NinjaSieve RDF Automatic Rotary Drum Filter for Koi Tilapia Pond, Fish Farm,Aquarium,Hydroponics, Aquaculture, Aquaponics, with Mobile Control Box, Smallest Koi Pond Filter 4T10-2 (925GPH)

• 🐟【Mechanical filtration】 The rotary drum koi pond filter can removes fish food residues, fish waste and suspended particles as small as 74 microns from the water by rapid mechanical rotation, which greatly reduces the maintenance stress of subsequent biochemical filtration. It also saves money by reducing the use of filter pad and the hassle of washing and changing pad.
• 🐟【Automatic Cleaning】NinjaSieve fish pond filter runs immediately after the power is turned on and requires almost no maintenance. The device allows impurities in the water to be quickly discharged through the sewage pipe without secondary pollution, stabilizing the water quality and making the fish pond water crystal clear. The exclusive controller offers one-touch mode selection (default: 20-second cleaning cycle per hour), no need to worry about complicated settings.
• 🐟【Durable Construction】Built to last with a 100% 304 stainless steel housing and drum/screen for corrosion protection and anti-aging. The transparent cover allows real-time monitoring of operations. CE and RoHS Certified, 2-Year Warranty.
• 🐟【Simply Installation & Installation】Just plug and play after connect the water pipe. Product dimensions: L 16.3"x W 8.5"x H 9.8", weight: 12lb. It‘s the most extremely tiny size so far. The control box comes with a 8.2 ft power cord, you can mount it in a convenient location. No UV-C System connection.
• 🐟【Wide Application】 Suitable for koi pond, tilapia pond, freshwater aquarium, turtle tank, shrimp pond, restaurants, fish plant intergrowth, hydroponics, aquaponics. This small outdoor pond filter can improve water quality and provide a clear and healthy pond for your fish. The maximum flow-through is 925GPH (3,500 L/h).
• 🐟【Energy-Efficient & Eco-Friendly】Simply install a solid-liquid separator at the drainage outlet to redirect treated water back into the pond, enabling closed-loop water reuse and significantly reducing water consumption. Alternatively, collect the nutrient-rich sediment periodically as organic fertilizer for gardens or crops, promoting sustainable and eco-conscious pond management.
• 🐟【Caution!】The flush pump in the koi filter should be submerged in water, otherwise the unit will make an ear-splitting noise and the flush pump will be damaged by dry firing!

How does the drum filter work?

Effortlessly Maintain Crystal-Clear Pond Water with the NinjaSieve Rotary Drum Filter 4T10-2 (RDF)

Say goodbye to murky water and high maintenance! The NinjaSieve RDF effectively removes fish food residues, sewage, fish waste, algae, and debris from your pond, delivering cleaner water while significantly reducing the burden on your biological filtration system. With a maximum flow rate of 3500 L/h.

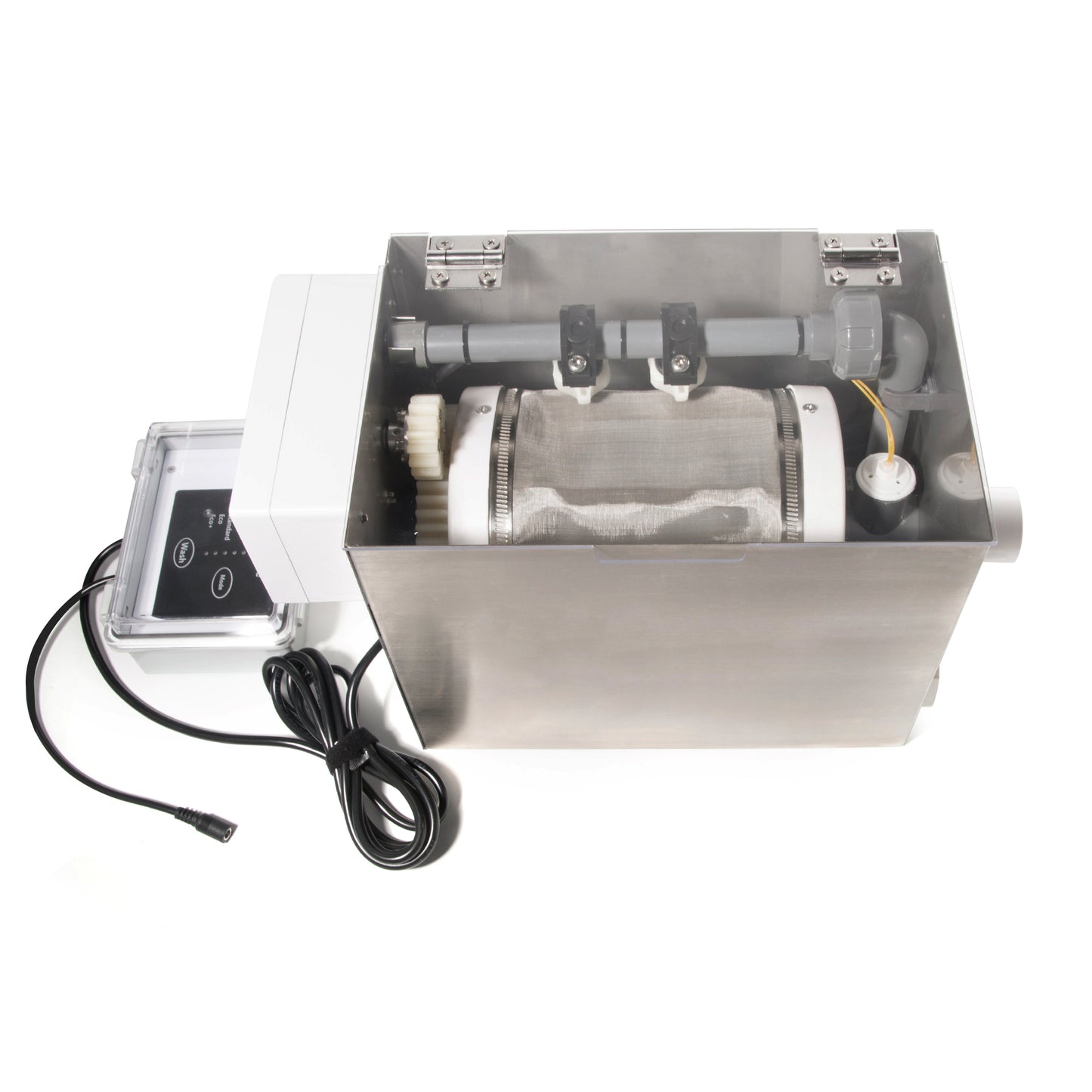

How it Works: Precision Filtration & Automatic Cleaning

• Inflow & Screening: Pond water enters the filter via the inlet pipe. Inside the rotating drum, a fine 74μm screen efficiently traps suspended particles.
• Impurity Separation: As water flows through the screen, impurities are captured on its surface.
• Automatic Backwashing: An integrated liquid level float switch continuously monitors water conditions. When triggered by accumulating debris (which increases backpressure/water level), it signals the controller to initiate a cleaning cycle. The backwash frequency automatically adjusts based on water contamination levels – higher at start-up, reducing as water quality improves. Lower frequency means cleaner water!
• Automatic Cleaning: During each 20-second cleaning cycle, powerful spray nozzles activate, washing the trapped debris off the screen and into the internal sewage receiving trough. Simultaneously, the drum rotates to ensure complete coverage.
• Waste Disposal: The dislodged waste is efficiently channeled out of the filter through the sewage outlet pipe.

Convenience at Your Fingertips: Five Pre-Set Cleaning Modes

• Choose the perfect cleaning regimen for your pond with just one click! We offer five distinct cleaning modes, eliminating the need for complex manual setup. Simply select your preference, and the NinjaSieve RDF handles the rest.

Technical Features
