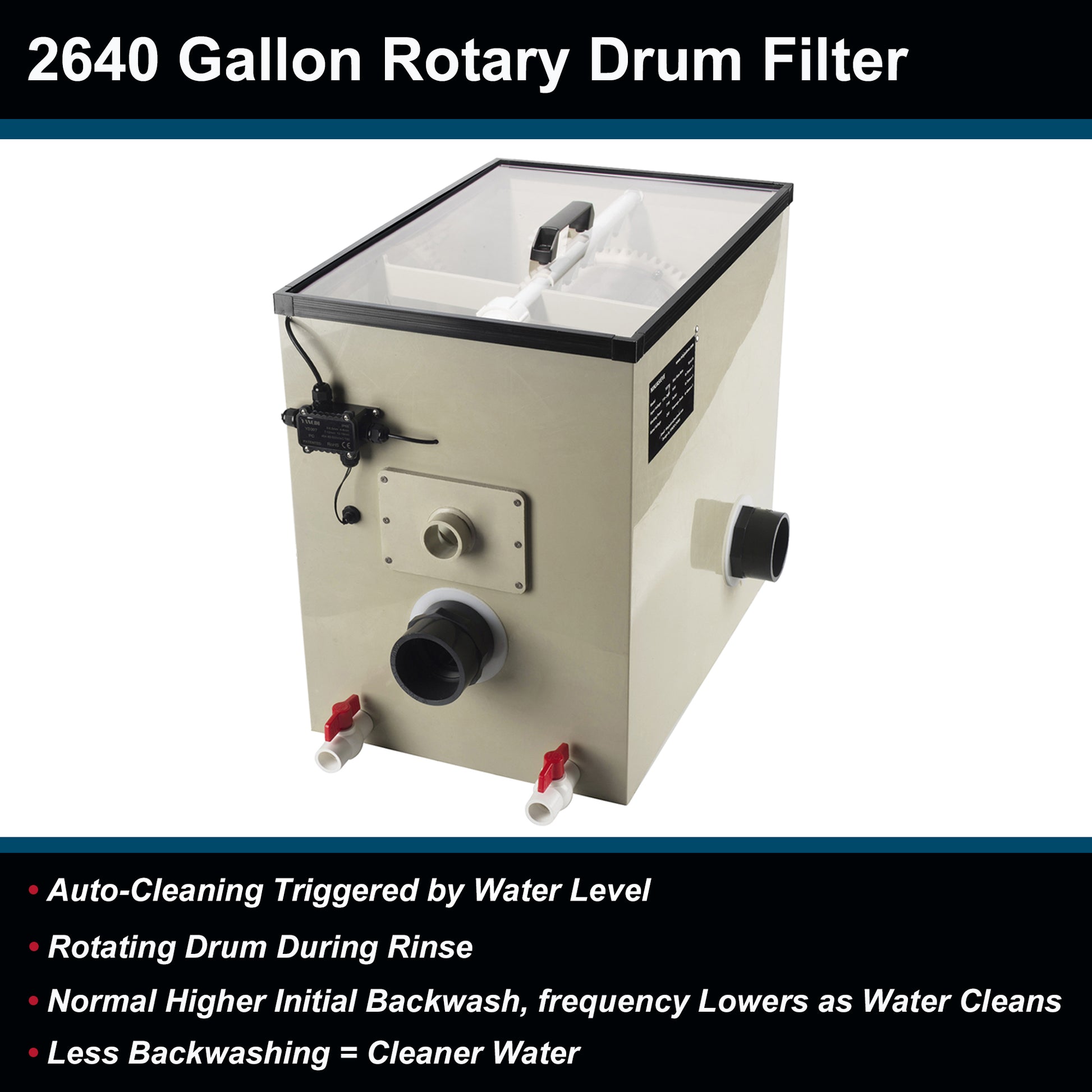

Ninjasieve PP RDF 10T10 Automatic Rotary Drum Filter 10000 l/h (2640 GPH) Coming Soon
Ninjasieve PP RDF 10T10 Automatic Rotary Drum Filter 10000 l/h (2640 GPH) Coming Soon
Couldn't load pickup availability
- The box and transmission gears of the rotary drum filter are made of PP material, which is resistant to sun aging and corrosion.
- 74 Micron stainless steel screen can effectively remove fish waste, food residue, algae and other impurities.
- Fully automatic high pressure flushing mode, instant sewage without secondary pollution, fast water purification.
- Our rotary drum filter‘s controller has 5 cleaning modes to choose from.
- The rated voltage of the device is 24V, which is safer.
- RDF filter is suitable for koi ponds, tilapia ponds, fish farms, aquariums, restaurants, fish plant intergrowth, hydroponics, aquaponics and so on.
- Caution! Silt pond use is not supported, silt will clog the device.
Suggested Pond Size:
Decorative Ponds: up to 3300 Litres (870 GAL)
Ponds with a small mix of fish: up to 6666 Litres (1760 GAL)
Ponds with a small mix of koi: up to 10000 Litres (2641 GAL)
Maximum Pump Flow rate: 10000 l/h (2640 GPH)

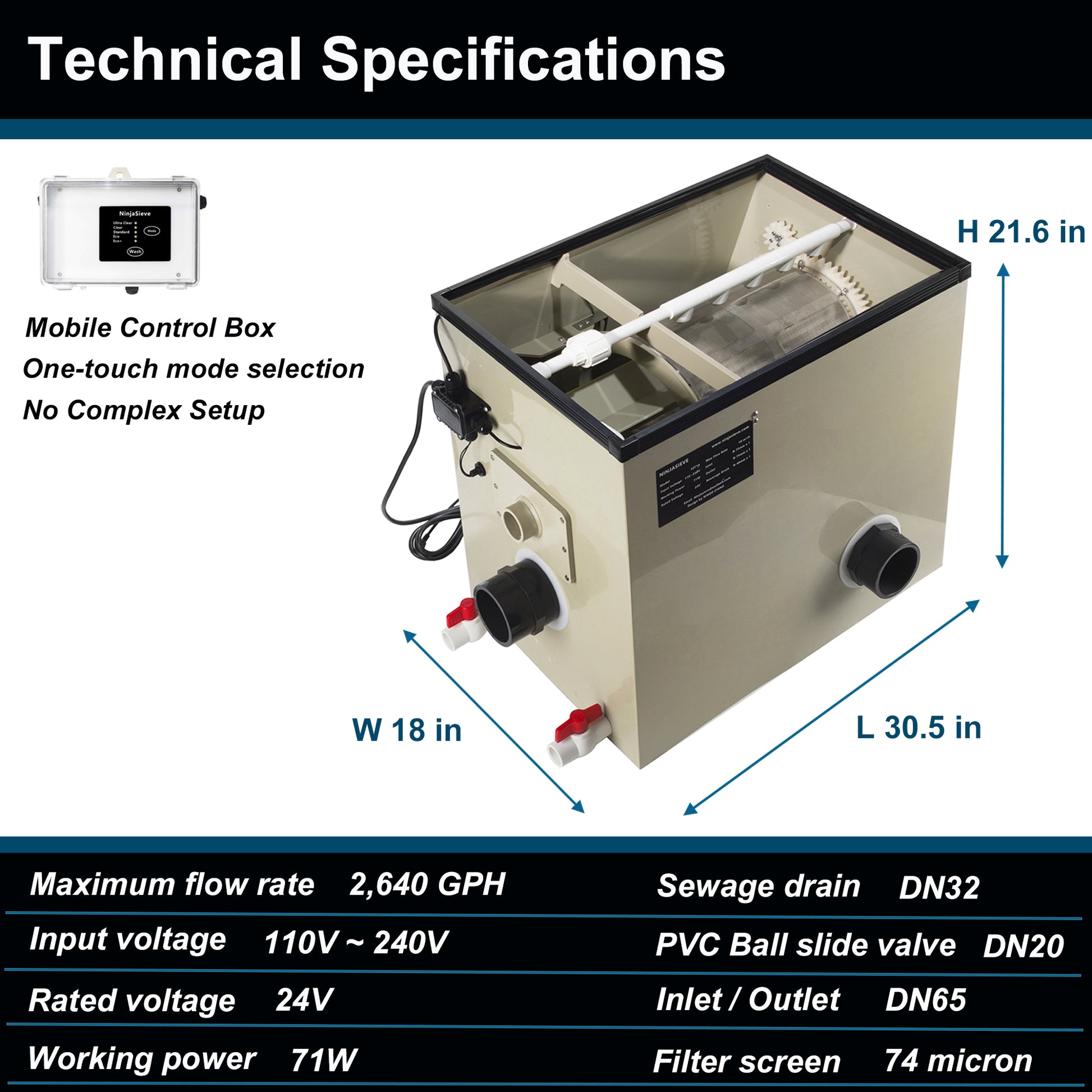

Technical features
|
Model |
10T10 |
10T10 |
|
Maximum flow rate |
10,000 l/h |
2640 GPH |
|
Input voltage |
110V ~ 240V |
110V ~ 240V |
|
Rated voltage |
24V |
24V |
|
Working power |
71W |
71W |
|
Water inlet diameter |
Φ 75 mm x 1 |
DN65 x 1 |
|
Outlet diameter |
Φ 75 mm x 1 |
DN65 x 1 |
|
Sewage drain diameter |
Φ 40 mm x 1 |
DN32 x 1 |
|

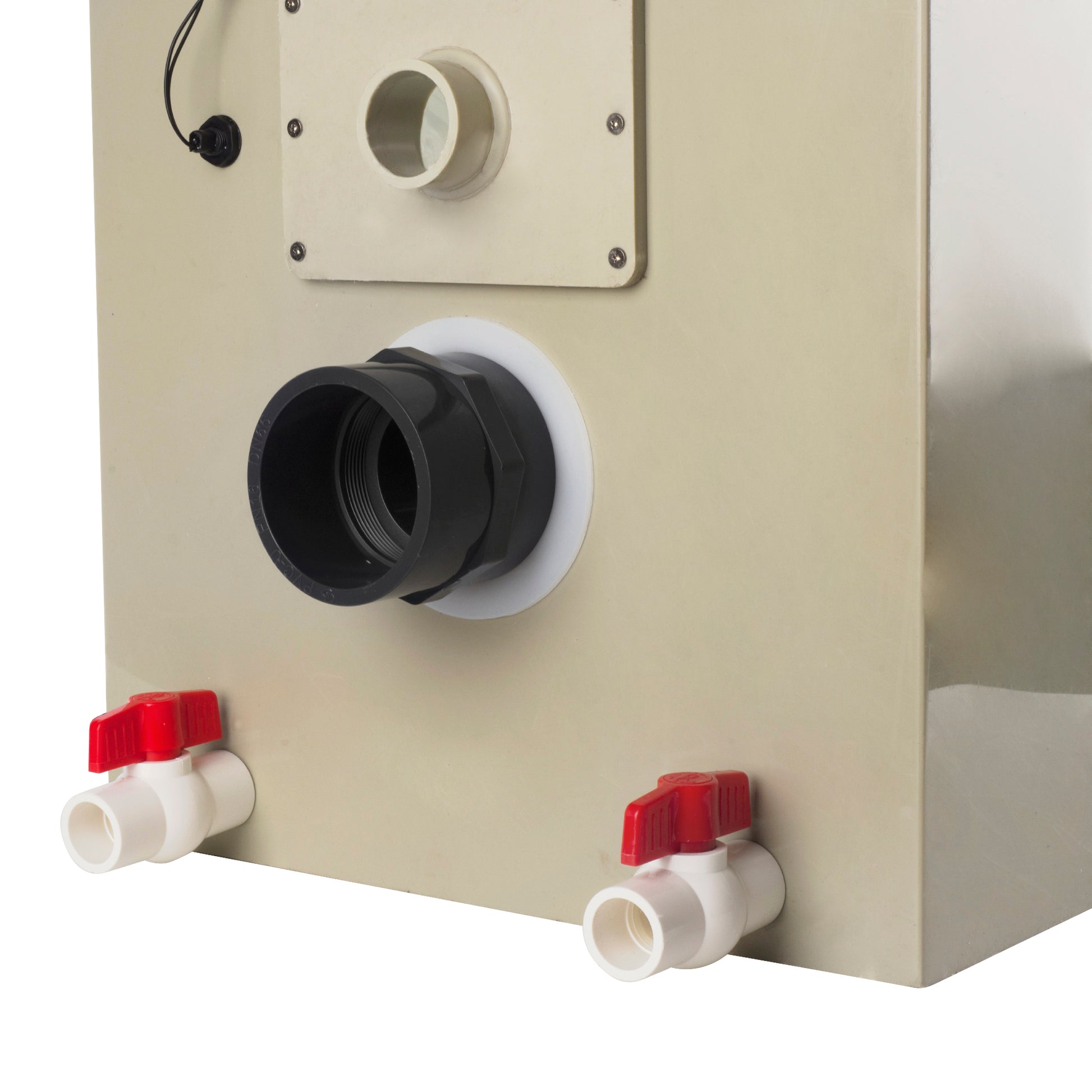

PVC Ball slide valve (dirt outlet of bottom ) |
Φ 25 mm x 2 |
DN20 x 2 |
|
Stainless steel nozzles |
1/4 BSPT x 5 |
1/4 BSPT x 5 |
|
Number of nozzles x Water consumption |
5 x 3.0 l/min |
5 x 0.8 gal/min |
|
Coarse debris extraction |
74 μm |
74 μm |
|
PVC Pipe End Cap |
Φ 20 mm x 1 |
DN15 x 1 |
|
PVC Tee fitting |
Φ 20 mm x 5 |
DN15 x 5 |
|
PVC Union coupling |
Φ 20 mm x 1 |
DN15 x 1 |
|
90 degree PVC elbow |
Φ 20 mm x 3 |
DN15 x 3 |
|
PVC Male adapter |
Φ 20 mm x 1 |
DN15 x 1 |
|
Barbed female PVC adapter |
Φ 20 mm x 1 |
DN15 x 1 |
|
Mesh intake strainer filter |
Φ 16 mm x 1 |
Φ 16 mm x 1 |
|
Liquid Float Switch |
M12 Screw |
M12 Screw |
|
Length of drum filter cable harness |
3 m |
118 in ( 9.8 ft ) |
|
Length of connection cable to control box |
1.3 m |
51 in ( 4.3 ft ) |
|
Dimensions |
75.4 cm x 47.7 cm x 54.7 cm |
29.7 in x 18.8 in x 21.5 in |
|
Weight |
20 kg |
44 lb |
How does the drum filter work?

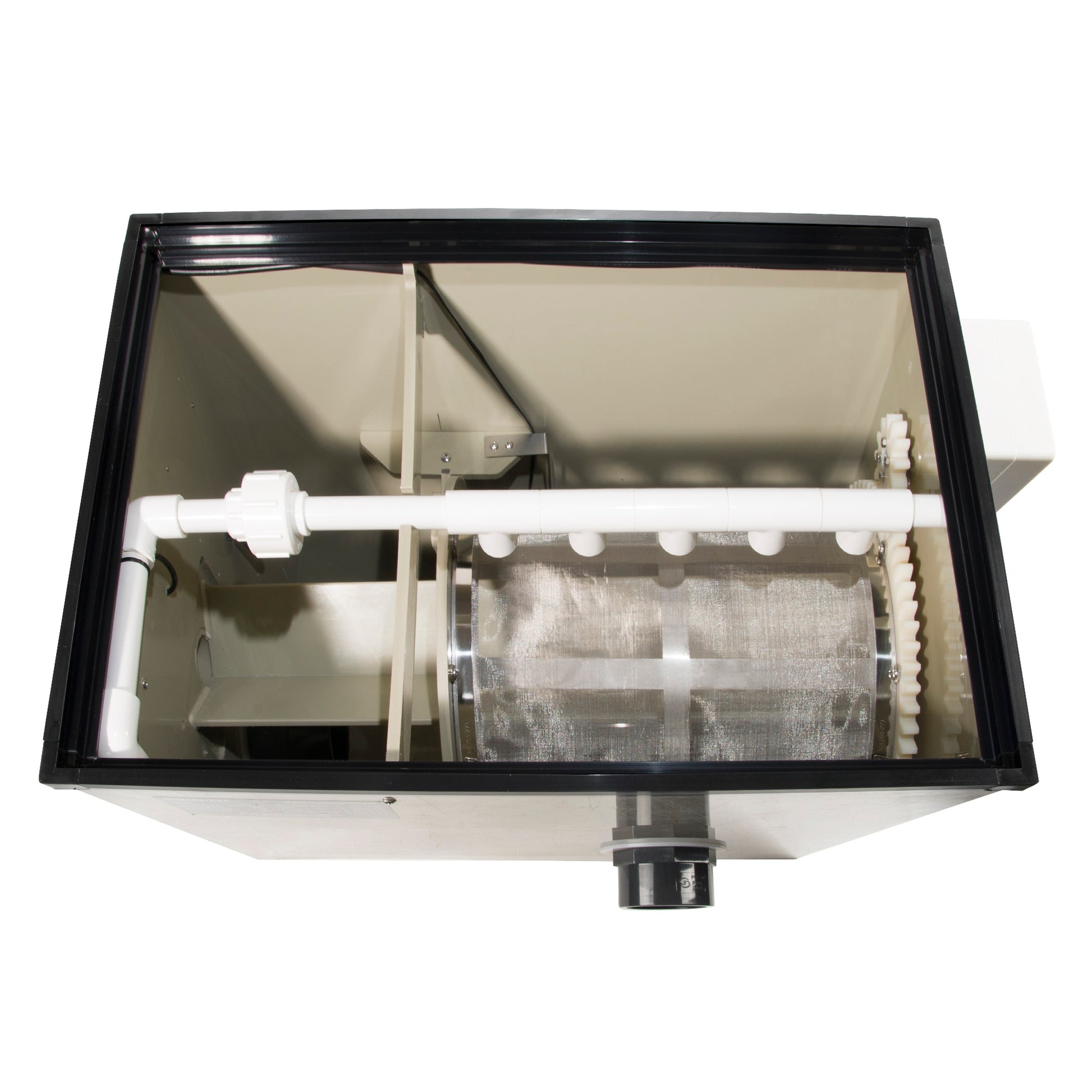

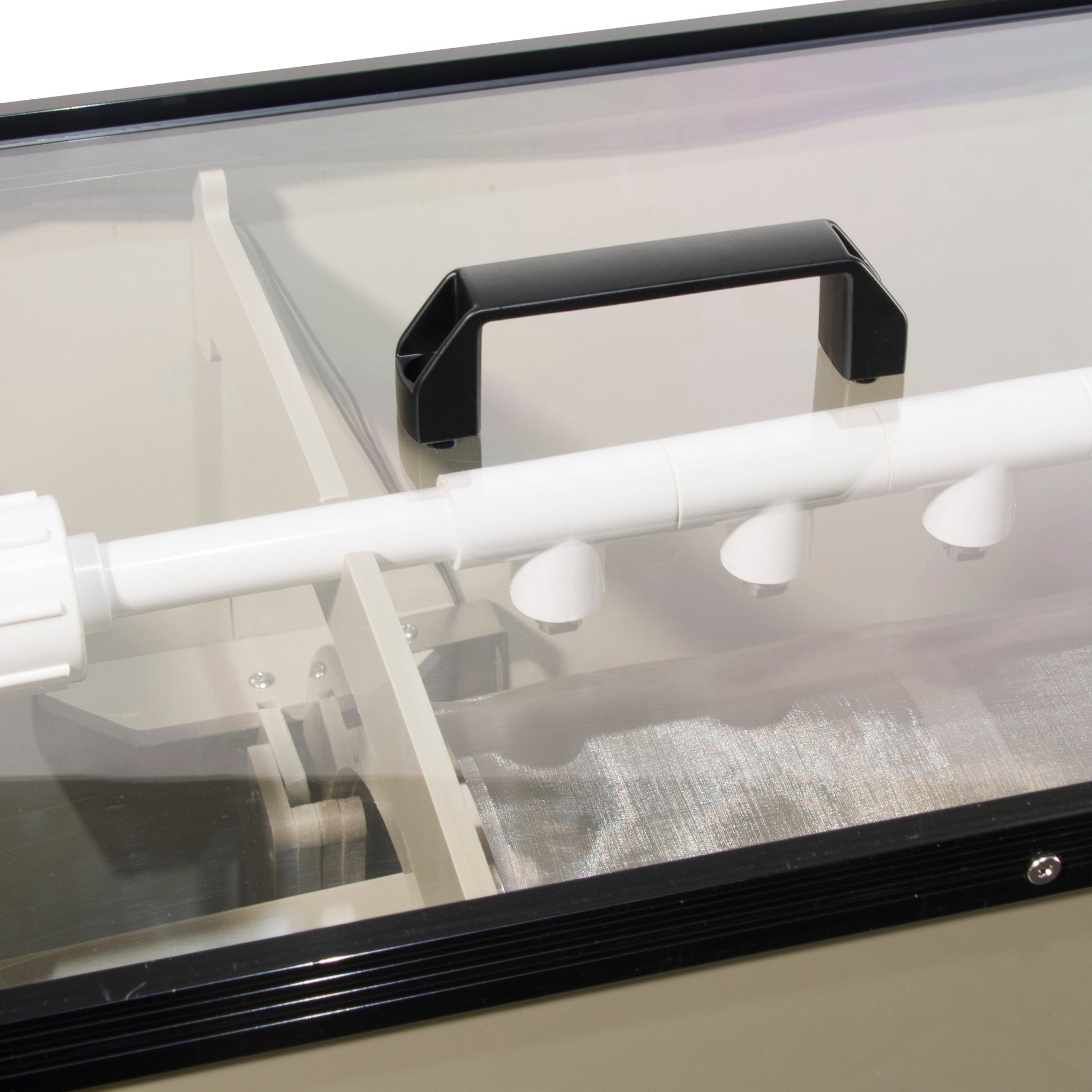

Ninjasieve Rotary Drum Filter 10T10 (RDF) effectively filters out fish food residues, sewage, fish waste, algae and debris, helping to clean the fish pond water and greatly reducing the maintenance stress on the biochemical filtration module; the maximum water flow rate of the filter is 10,000 l/h. There is a sewage receiving trough inside the drum, the fish pond water flows into the filter through the inlet pipe, the impurity particles in the water are separated through the 74 μm screen , and the nozzles sprays the impurities attached to the sieve down to sewage receiving trough, which is discharged by the sewage pipe.
The device is equipped with a PP liquid float switch, when the water level sensor detects a change in the water level, it will send a signal to the controller to start the cleaning program, the backwash frequency is determined by the degree of water contamination, but the controller will automatically flush the screen every hour, the drum will rotate at the same time as the flushing, and the time for each flushing is 20 seconds.
In addition, the controller is also set up with 5 cleaning modes, you can choose the corresponding mode according to your needs or choose one button cleaning. (Note that the controller can not adjust the time.)
It is normal to have a high backwash frequency at the beginning of use, and the backwash frequency will be lowered after the water quality is improved, lower backwash frequency means cleaner water.
